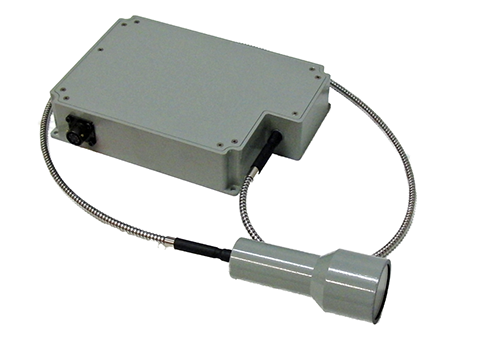

The UC-5 module is an ultracompact high power green laser device for use by OEM’s and systems integrators to add long range non-lethal deterrence to their equipment. The small size and fiber coupled transmitter allow easy integration with existing systems. The modules are designed for use in harsh environments. An optional integrated rangefinder is available to prevent operation on targets within the NOHD.
Click to englarge
UC-5
Contact the Defense and Security business unit to discusss your application.
Contact us
Features
Laser Specifications
- High laser power, 5000 mW
- Lowest SWaP (size, weight and power consumption) of any multiWatt green laser
- All optics and electronics in a single package, only DC input power required
- Fully sealed for outdoor applications (IP67)
- Optional integrated rangefinder to prevent operation on targets within the NOHD
Optical
Laser power
Wavelength
Beam divergence
5000 mW
532 nanometers
Customer defined
Power
Input Voltage
Protection
Consumption
12 VDC, customer defined
Over-voltage/over-current protection meets MIL-STD 1275D
< 50 Watts
Connection and control
Connector
Laser control
4-pin (MIL-C-26482)
TTL, analog, or manual
Mechanical
Weight
Dimensions
< 2 kg
200 x 135 x 41 mm
Environmental
Standards
Operating temp.
Humidity
Dust/sand
Wind/rain/fog
Salt spray
Material
EMI certification
RoHS compliance
Designed to IP67
-20 - +60 C
100% RH, non-condensing
Sustained exposure to blowing dust/sand
IP 67
MIL-810F salt spray
Painted aluminum
CE Mark and FCC Part 15, Subpart B, Class A
Yes
