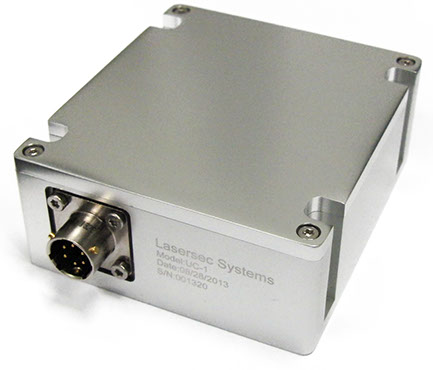

The UC-1 is an ultracompact non-lethal laser device designed for OEM and military applications. Different mounting options allow easy integration with surveillance and weapon systems (lethal or non-lethal). UC-1 lasers are completely self contained and can be operated manually or via remote control signals. OEM versions for integration into existing system housings are also available.
Click to enlarge
UC-1
Contact the Defense and Security business unit to discusss your application.
Contact us
Features
Laser Specifications
- High laser power, 1000 mW
- Remotely controllable
- Solid and vibration tolerant for vehicle mounted applications
- Fully sealed for outdoor/marine applications (IP67)
Optical
Laser power
Wavelength
Beam divergence
1000 mW
532 nanometers
Customer defined
Power
Input Voltage
Protection
Consumption
12 VDC, or customer defined
Over-voltage/over-current protection meets MIL-STD 1275D
< 12 Watts
Connection and control
Connector
Laser control
6-pin (D38999)
rs232
Mechanical
Weight
Dimensions
< 0.2 kg
90 x 90 x 40 mm
Environmental
Standards
Operating temp.
Humidity
Dust/sand
Wind/rain/fog
Salt spray
Material
EMI certification
RoHS compliance
Designed to IP67
-30 - +70 C
100% RH, non-condensing
Sustained exposure to blowing dust/sand
IP 67
MIL-810F salt spray
Anodized aluminum
CE Mark and FCC Part 15, Subpart B, Class A
Yes
