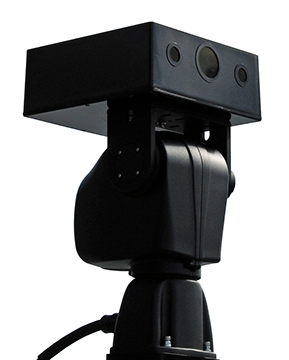

SeaLase II is based on the same patented high power laser technology as the original SeaLase integrated in a multifunctional beam director and surveillance platform. Electronically variable beam divergence allows the user to choose between suppression/deterrence, hail/warning, and illumination operation. The wide angle illumination mode allows the integrated camera to operate in total darkness. Thermal, ultra low light sCMOS, and SWIR cameras are optionally available for extended performance. An optional built-in laser rangefinder provides safe and effective operation by ensuring the correct amount of laser power on target in each operational mode. The sealed optical payload is mounted on a pan/tilt platform designed for 24/7 use in harsh all-weather environments. Video target tracking, and radar ”slew-to-cue” are standard features.
Click to englarge
SeaLase II
Contact the Defense and Security business unit to discusss your application.
Contact us
Features
Laser Specifications
Camera Specifications
- Highest laser power, 5000 mW
- Video target tracking
- Integrated High Definition camera
- Radar ”slew-to-cue”
- Solid and vibration tolerant for vehicle mounted applications
- Fully sealed for marine applications (IP67)
- Multiple control interfaces: RS-232/485/422 and Ethernet
Download datasheet
Internal UC-5 laser module
Laser power
Wavelength
Beam divergence
Output beam profile
5000 mW
532 nanometers
0.2° to 2.3°
Flat top, uniform intensity
Image sensor
Resolution
Lens
FOV
Camera control
Camera output
1/2.8-type ‘Exmor’ CMOS
Full HD 1920 x 1080
20x optical zoom, f=4.7 mm to 94.0 mm
2.9° to 55.4°
VISCA
HD-SDI, Ethernet stream
