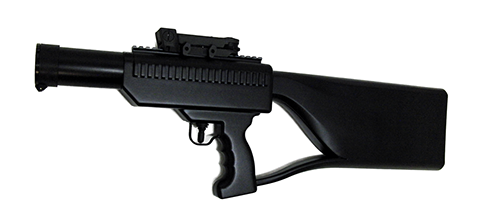

The Medusa is a competely self contained high power green laser device which provides the longest range non-lethal deterrence of any technology available. The rifle contains a UC-5 laser module and control electronics, dual batteries, and an integrated laser transmitter. Three picatinny rails allow the use of multiple aiming scopes for different operating conditions. An optional integrated rangefinder is available to prevent operation on targets within the NOHD.
Click to englarge
Medusa
Contact the Defense and Security business unit to discusss your application.
Contact us
Features
Laser Specifications
- Highest laser power available, 5000 mW
- Continuous operation for >80 minutes without recharge
- Fully sealed for outdoor applications (IP66)
- Certified eye-safe by IEC regulations
- Optional integrated rangefinder to prevent operation on targets within the NOHD
Optical
Laser power
Wavelength
Beam divergence
5000 mW
532 nanometers
Customer defined
Power
Dual batteries
Protection
Run time
18 Ah capacity
Over-voltage/over-current protection meets MIL-STD 1275D
> 80 minutes continuous
Connection and control
Charge connector
Laser control
2-pin (MIL-C-26482)
Trigger
Mechanical
Weight
Dimensions
< 4 kg
665 x 157 x 60 mm
Environmental
Standards
Operating temp.
Humidity
Dust/sand
Wind/rain/fog
Salt spray
Material
EMI certification
RoHS compliance
Designed to IP66
-20 - +60 C
100% RH, non-condensing
Sustained exposure to blowing dust/sand
IP 66
MIL-810F salt spray
ABS and aluminum
CE Mark and FCC Part 15, Subpart B, Class A
Yes
