The Hydra pistol is a competely self contained high power green laser device which provides short and mid range non-lethal deterrence. The pistol contains a UC-0.8 laser module and control electronics, 3 Ah battery, and an integrated laser transmitter. A picatinny rail allow the use of aiming scopes for longer range operations.
x

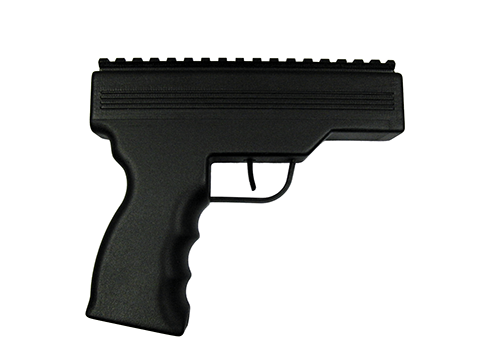

Hydra-P
Click to englarge
Contact the Defense and Security business unit to discusss your application.
Contact us
Features
Laser Specifications
- High laser power, 1000 mW
- Continuous operation for > 60 minutes without recharge
- Fully sealed for outdoor applications (IP66)
- Certified eye-safe by IEC regulations
Optical
Laser power
Wavelength
Beam divergence
1000 mW
532 nanometers
Customer defined
Power
Battery
Protection
Run time
3000 mAh capacity
Over-voltage/over-current protection meets MIL-STD 1275D
< 1 hour continuous
Connection and control
Charge connector
Laser control
2-pin (MIL-C-26482)
Trigger
Mechanical
Weight
Dimensions
< 0.4 kg
pistol
Environmental
Standards
Operating temp.
Humidity
Dust/sand
Wind/rain/fog
Salt spray
Material
EMI certification
RoHS compliance
Designed to IP67
-20 - +60 C
100% RH, non-condensing
Sustained exposure to blowing dust/sand
IP 67
MIL-810F salt spray
Painted aluminum
CE Mark and FCC Part 15, Subpart B, Class A
Yes
